ELCOLED / EFW-LG
Enquire about this product ↗Elco Facade – LG Series
EFW-LG
WallWasher / Linear Grazer
| Product Model | Introduction | Power (W) | Luminous Flux (lm) | Efficacy (lm/W) | Length (mm) |
|---|---|---|---|---|---|
| EFW-LG3-15 | 220V AC | 3.6 | 362 | 101 | 150 |
| EFW-LG6-22 | 220V AC | 7.2 | 723 | 101 | 220 |
| EFW-LG9-30 | 220V AC | 10.9 | 1085 | 100 | 300 |
| EFW-LG12-37 | 220V AC | 14.5 | 1446 | 100 | 370 |
| EFW-LG18-53 | 220V AC | 21.7 | 2169 | 100 | 530 |
| EFW-LG24-70 | 220V AC | 29 | 2892 | 100 | 690 |
| EFW-LG36-100 | 220V AC | 43.5 | 4338 | 100 | 1000 |
| EFW-LG45-125 | 220V AC | 54.3 | 5423 | 100 | 1250 |
| EFW-LG57-155 | 220V AC | 68.8 | 6870 | 100 | 1550 |
The LG Series wall washer is a linear wall grazer designed for façades. Its shielding, uniform light distribution and CrocDesign PCB technology deliver high outdoor performance.

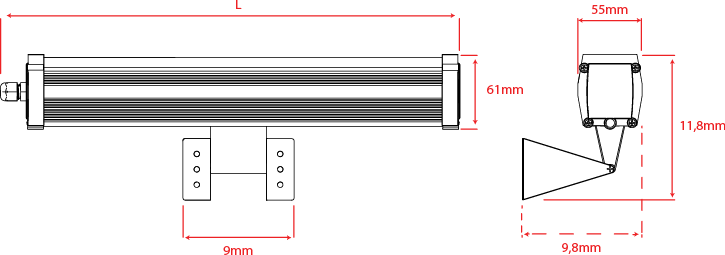

Technical drawings
Options
Light colour
Connection
Lens
Colour rendering index (CRI)
Control
Downloads
References
ZARA Tower – Forum Bornova İzmir
*The provided luminous flux values are based on 4000K. Depending on the diffuser cover material and manufacturer, variations of ±10% may occur. *Elco LED reserves the right to change the information on this page without prior notice. *The power and lumen values of custom products are estimated average values
TECHNICAL OPTIONS
Configure product ↗9 variants. Your choice.
| Product code | Power | Luminous flux | CCT | CRI | IP | Beam angle | Control | Housing | Selection |
|---|---|---|---|---|---|---|---|---|---|
| EFW-LG3-15 | 3.6 W | 362 lm | — | — | — | — | — | — | Select ↗ |
| EFW-LG6-22 | 7.2 W | 723 lm | — | — | — | — | — | — | Select ↗ |
| EFW-LG9-30 | 10.9 W | 1085 lm | — | — | — | — | — | — | Select ↗ |
| EFW-LG12-37 | 14.5 W | 1446 lm | — | — | — | — | — | — | Select ↗ |
| EFW-LG18-53 | 21.7 W | 2169 lm | — | — | — | — | — | — | Select ↗ |
| EFW-LG24-70 | 29 W | 2892 lm | — | — | — | — | — | — | Select ↗ |
| EFW-LG36-100 | 43.5 W | 4338 lm | — | — | — | — | — | — | Select ↗ |
| EFW-LG45-125 | 54.3 W | 5423 lm | — | — | — | — | — | — | Select ↗ |
| EFW-LG57-155 | 68.8 W | 6870 lm | — | — | — | — | — | — | Select ↗ |
