ELCOLED / EPS-DR
Ürün hakkında iletişim ↗Elco Pendant Kare Davul Radus
EPS-DR
Suspended - Square
| Product Model | Input Voltage | Power (W) | Light Intensity (lm) | Efficiency (lm/W) | Dimensions (mm) | Section (mm) |
|---|---|---|---|---|---|---|
| EPS-DR40 | 220V AC | 17 | 2249 | 133 | 400×400 | H3 H5 H8 H10 |
| EPS-DR50 | 220V AC | 26 | 3440 | 133 | 500×500 | |
| EPS-DR60 | 220V AC | 39 | 5159 | 133 | 600×600 | |
| EPS-DR90 | 220V AC | 84 | 11111 | 133 | 900×900 | |
| EPS-DR100 | 220V AC | 104 | 13757 | 133 | 1000×1000 | |
| EPS-DR120 | 220V AC | 153 | 20238 | 133 | 1200×1200 |
Yumuşak köşe tasarımı, verimli CrocDesign PCB’leri ve özelleştirilebilir boyutlarıyla mimari kare sarkıt LED armatür.

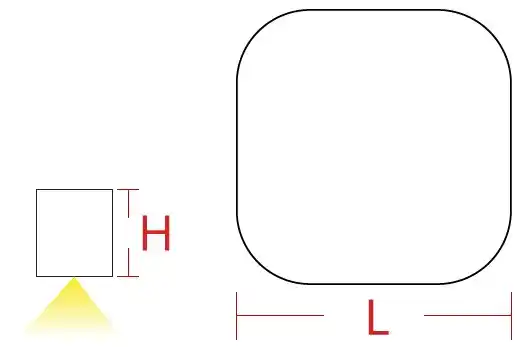

Teknik çizimler
İndirmeler
Referanslar
ELCOLED
HB Plastik
HB Plastic transformed their workspace with modern sustainable office lighting solutions, boosting productivity and reducing energy use.
Detayları incele ↗
ELCOLED
BZJ Tekstil Fabrika
Elcoled & BZJ Tekstil: Endüstriyel Zarafeti Aydınlatmak Elcoled olarak, Bursa, …
Detayları incele ↗HB Plastik
BZJ Tekstil Fabrika
*The provided luminous flux values are based on 4000K. Depending on the diffuser cover material and manufacturer, variations of ±10% may occur. *Elco LED reserves the right to change the information on this page without prior notice. *The power and lumen values of custom products are estimated average values
TEKNİK SEÇENEKLER
Ürünü yapılandır ↗
