EDR-SE

recessed downlights

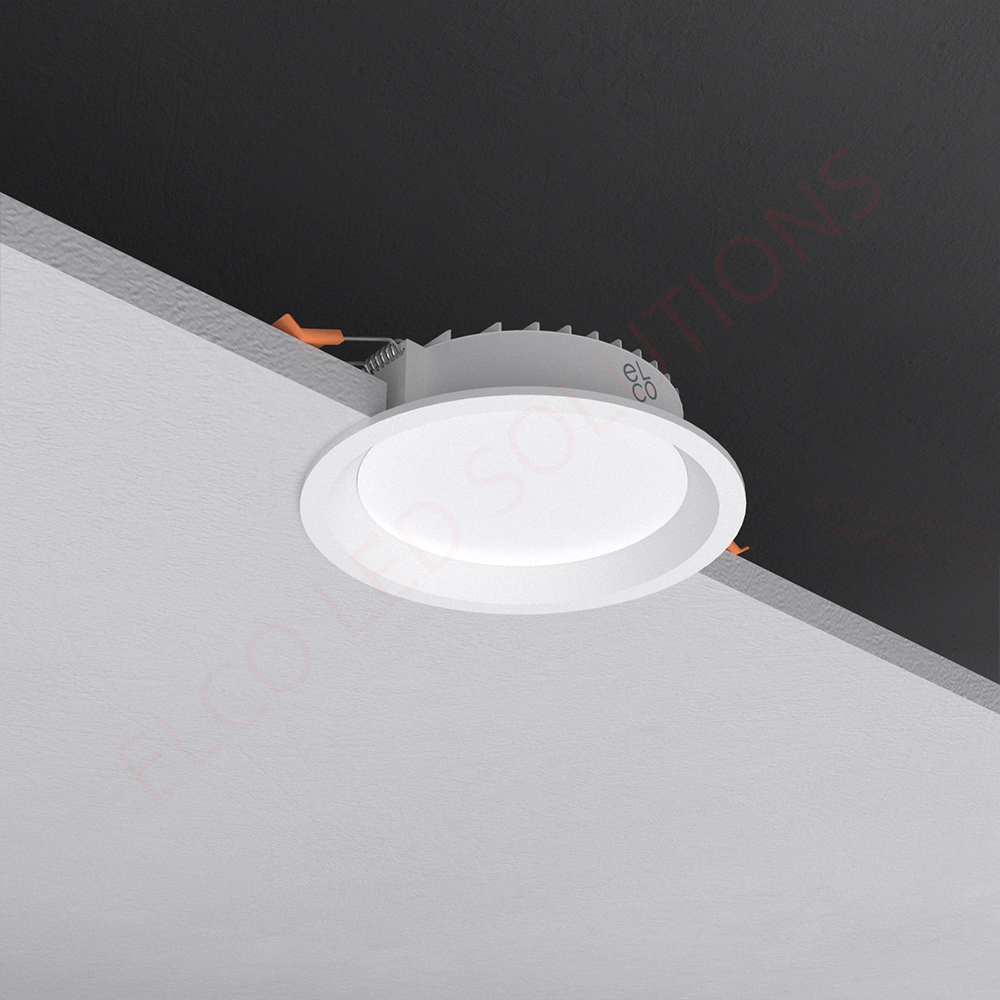

SE Series Recessed Spotlight LED light SE Serisi sıva altı
EDR-SE

recessed downlights

SE Series Recessed Spotlight LED light SE Serisi sıva altı
Product Model Input Voltage Power (W) Light Intensity (lm) Efficiency (lm/W) Cutout Size (mm)

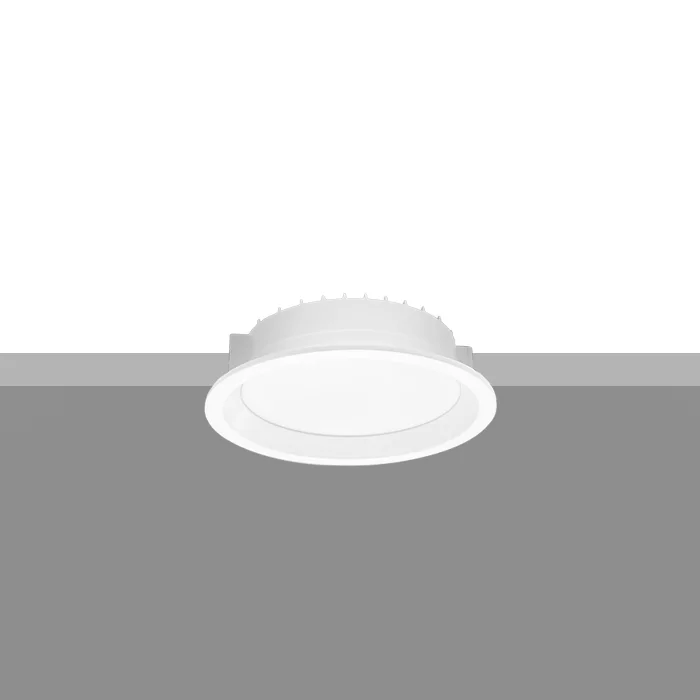

EDR-SE3 220V AC 7 761 105 78

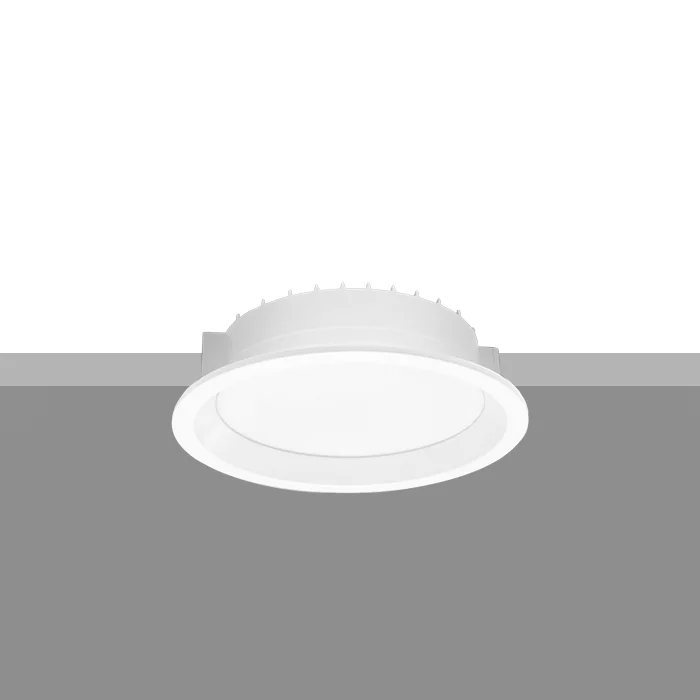

EDR-SE4 220V AC 11 1258 115 95

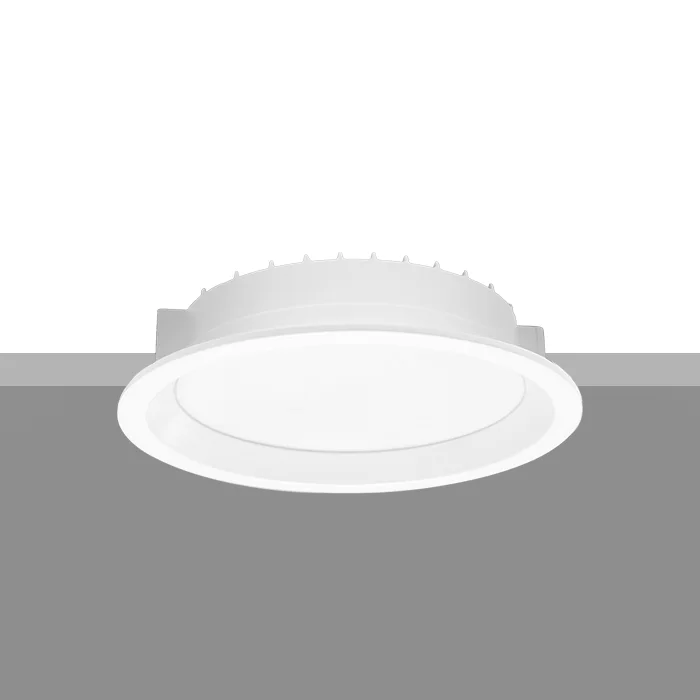

EDR-SE5 220V AC 16 1829 115 129

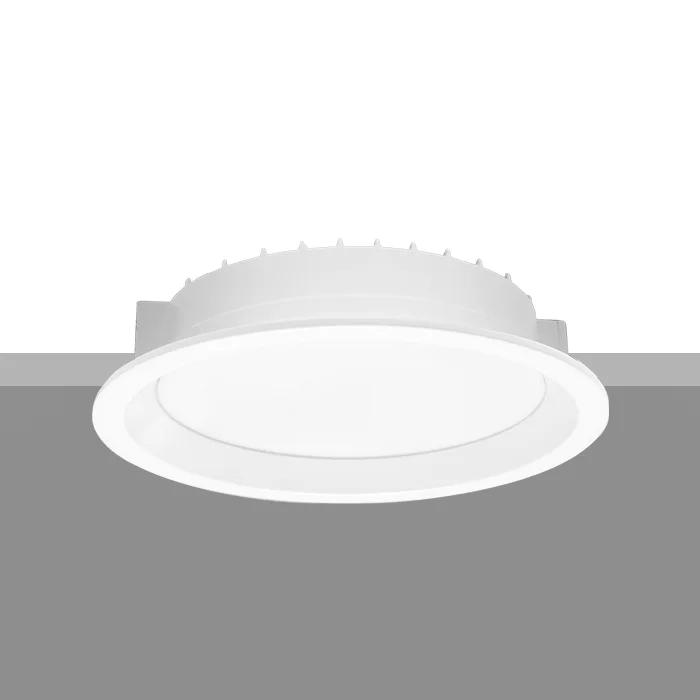

EDR-SE6 220V AC 20 2286 115 162

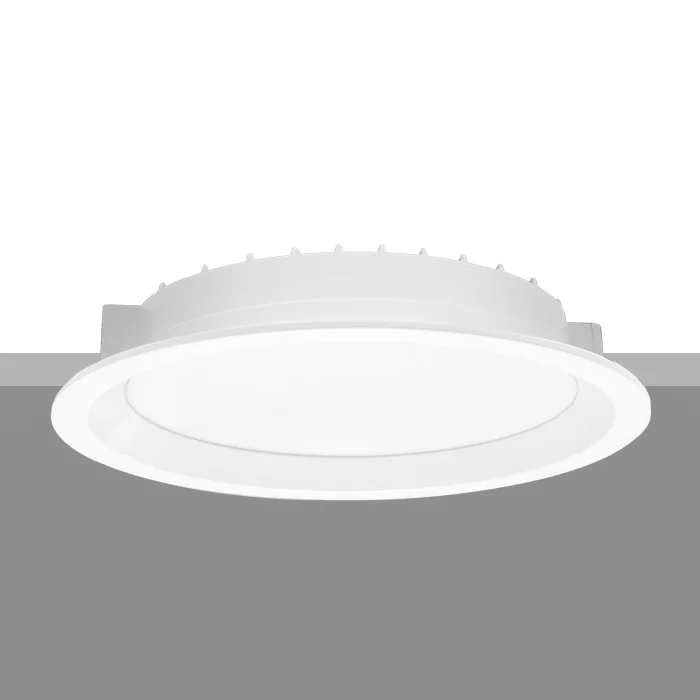

EDR-SE8 220V AC 26 2970 115 200



  flicker_free_titresimsiz indoor_ic_mekan smd LED mono

Dimensions
  • Sketch

    (C) Cut Out (mm)

    (D) Diameter (mm)

    (H) Height (mm)

    Weight (kg)

EDR-SE3

78

90

35

0.083

EDR-SE4

95

120

40

0.129

EDR-SE5

129

145

40

0.180

EDR-SE6

162

175

40

0.230

EDR-SE8

200

222

40

0.345

Customization Options
  • Light Color Options

  • Housing Color Options

  • Connection Options

  • Lens Options

  • CRI Options

  • Control Options

Download
References
MEDICANA INTERNATIONAL İZMİR
BZJ TEXTILE FACTORY

*The provided luminous flux values ​​are based on 4000K. Depending on the diffuser cover material and manufacturer, variations of ±10% may occur.
*Elco LED reserves the right to change the information on this page without prior notice.
*The power and lumen values ​​of custom products are estimated average values
