EDR-RB

Recessed

RB Series Recessed Spot EDR-RB by Elco LED Lighting
EDR-SE

Recessed

RB Series Recessed Spot EDR-RB by Elco LED Lighting
Product Model Input Voltage Power (W) Light Intensity (lm) Efficiency (lm/W) Cut-Out (mm)

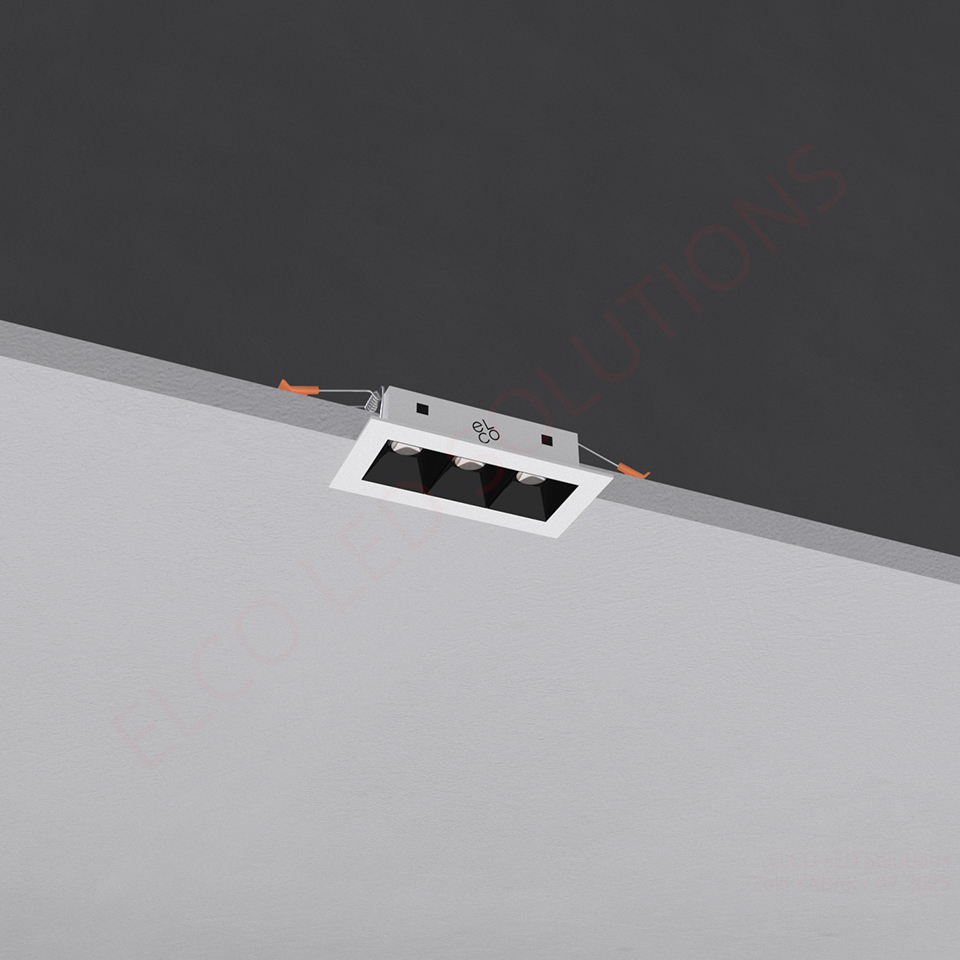

EDR-RB3 220V AC 4 442 110 40×90

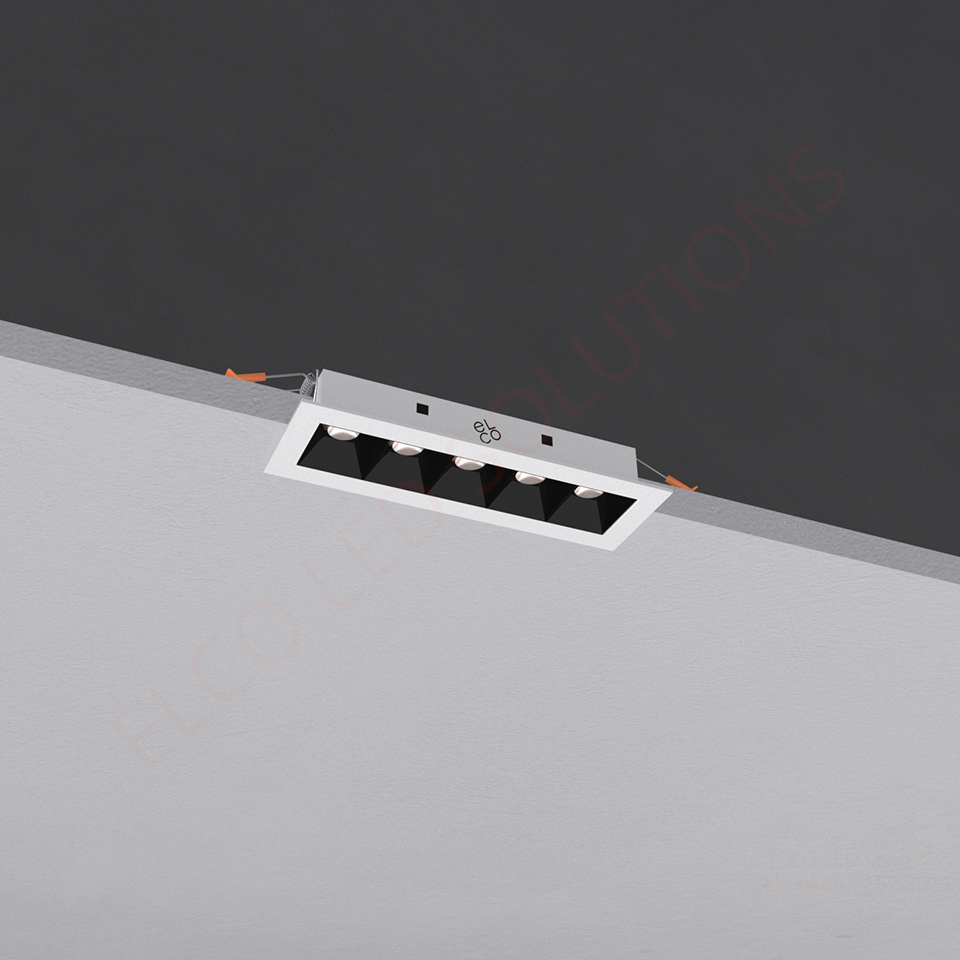

EDR-RB5 220V AC 6,3 693 110 40×150
EDR-RB5-E 220V AC 6,3 693 110 35×148

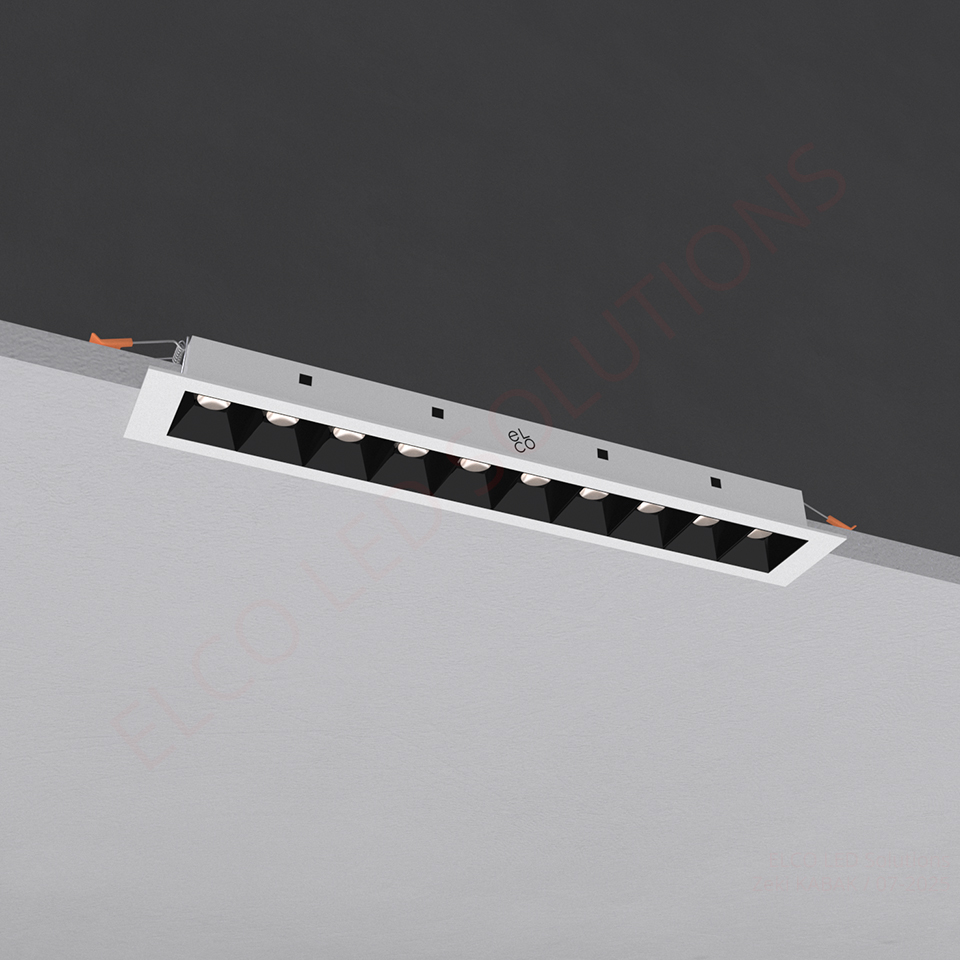

EDR-RB10 220V AC 12,6 1385 110 40×280

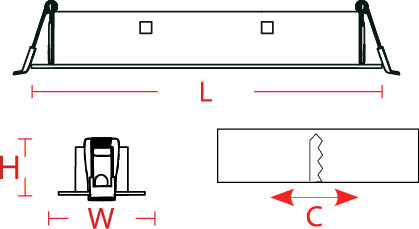

Dimensions
  • Sketch

    (C) Cut Out (mm)

    (L) Length (mm)

    (W) Width (mm)

    (H) Height (mm)

EDR-RB3

40x90

100

50

35

EDR-RB5

40x150

160

50

35

EDR-RB5-E

35x148

160

45

35

EDR-RB10

40x280

293

50

35

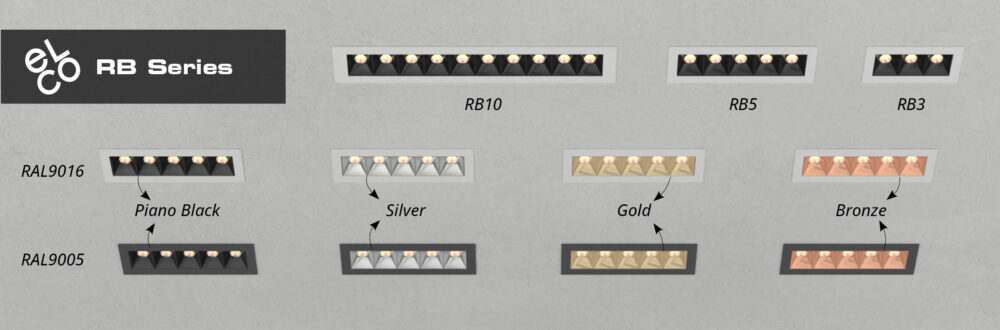

Customization Options
  • Light Color Options

  • Housing Color Options

  • Connection Options

    cable_kablo connector_klemens

  • Lens Options

  • Reflector Options

  • Control Options

    dali dimmable On Off

  • CRI Options

    80+ CRI 90+ CRI

Download
References
MEDICANA INTERNATIONAL İZMİR
BZJ TEXTILE FACTORY

*The provided luminous flux values ​​are based on 4000K. Depending on the diffuser cover material and manufacturer, variations of ±10% may occur.
*Elco LED reserves the right to change the information on this page without prior notice.
*The power and lumen values ​​of custom products are estimated average values
