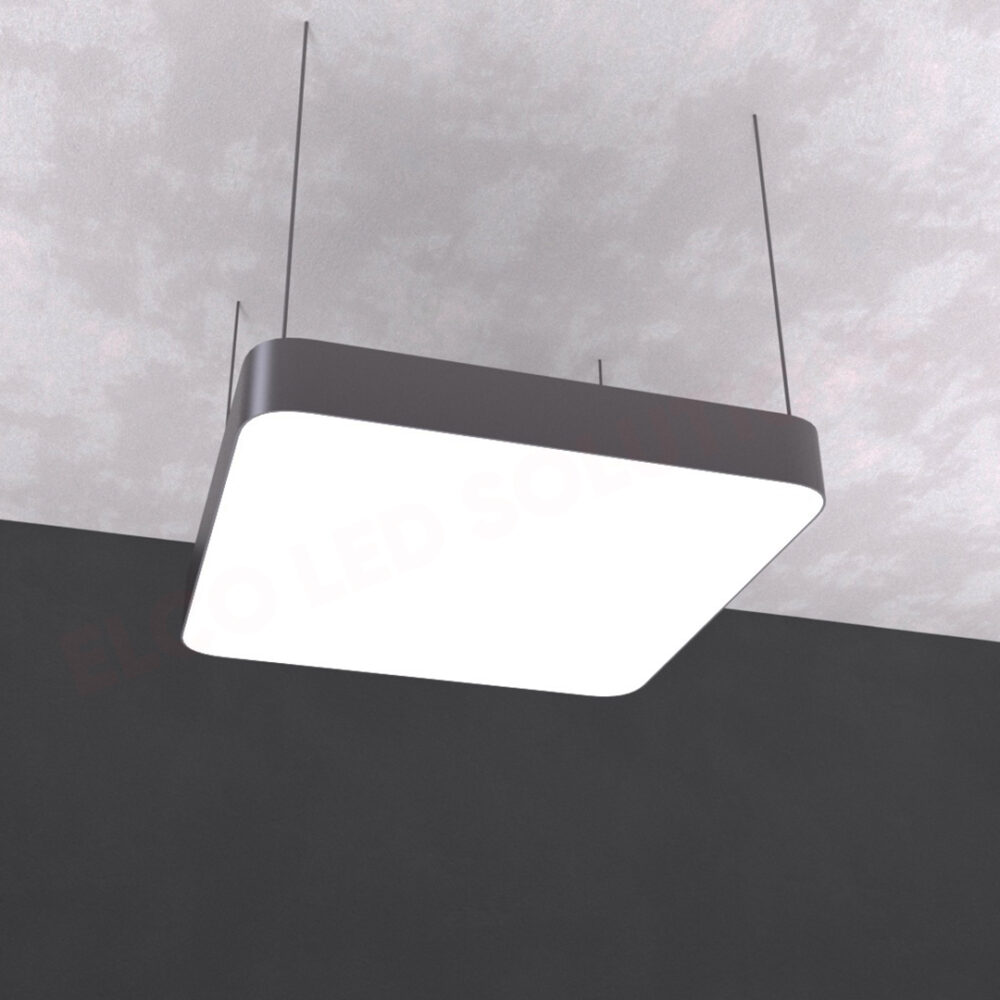

EPS-DR

Suspended - Square

EDR-SE

Suspended - Square

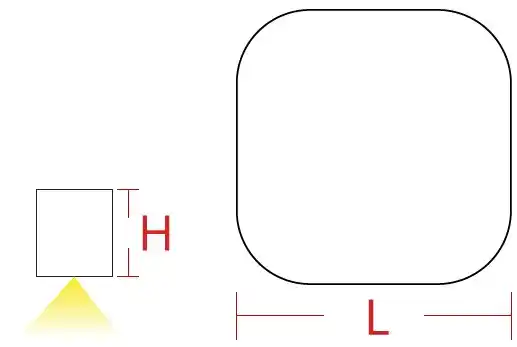

Product Model Input Voltage Power (W) Light Intensity (lm) Efficiency (lm/W) Dimensions (mm) Section (mm)
EPS-DR40 220V AC 17 2249 133 400×400
H3
H5
H8
H10
EPS-DR50 220V AC 26 3440 133 500×500
EPS-DR60 220V AC 39 5159 133 600×600
EPS-DR90 220V AC 84 11111 133 900×900
EPS-DR100 220V AC 104 13757 133 1000×1000
EPS-DR120 220V AC 153 20238 133 1200×1200

Download
References
HB PLASTİK
BZJ TEXTILE FACTORY

*The provided luminous flux values ​​are based on 4000K. Depending on the diffuser cover material and manufacturer, variations of ±10% may occur.
*Elco LED reserves the right to change the information on this page without prior notice.
*The power and lumen values ​​of custom products are estimated average values
